Textile Quality Control: Complete Guide to AQL and Inspection

Textile testing is the quality-control discipline that measures whether a fabric, yarn, or finished textile meets the physical, chemical, and performance requirements of its end use. The discipline is built on standardized test methods, predominantly ISO, AATCC, and ASTM, that specify the equipment, the procedure, the conditioning, and the reporting format for each property. A mill that wants to sell to a major apparel brand must run the right tests, on the right equipment, with the right calibration, and report the results in the format the buyer’s specification requires. Skipping a test or running it on uncalibrated equipment is the single most common reason mills lose buyers or face chargebacks.

This article covers the categories of textile tests (physical, chemical, colorfastness, performance), the lab infrastructure required to run them, the key standards bodies and their test methods, and the practical workflow a mill or brand QC lab uses to deliver a compliant shipment. The content draws on third-party textile testing lab methodology, the major test-method standards catalogs, and the practical experience of accredited testing labs.

Why textile testing matters

Every textile buyer, apparel brand, retailer, hospitality group, defense contractor, has a specification. The specification lists the properties the textile must have (weight, tensile strength, colorfastness, dimensional stability, abrasion resistance, etc.), the test method to use for each, and the minimum acceptable value. A shipment that fails the specification is either rejected, reworked, or accepted with a price concession. The cost of a failed shipment is high: it includes the testing cost, the logistics cost of returning or replacing the fabric, the production-line downtime while waiting for compliant material, and the brand-side chargeback.

For the mill, testing is the final check that the production process has stayed within control. A shift in yarn quality, a chemistry change in finishing, or a worn-out piece of equipment will show up as a test result out of spec, and the QC system catches it before the fabric ships. For the brand, testing is the assurance that the mill’s process is stable and that the garment will perform for the consumer over its expected lifetime.

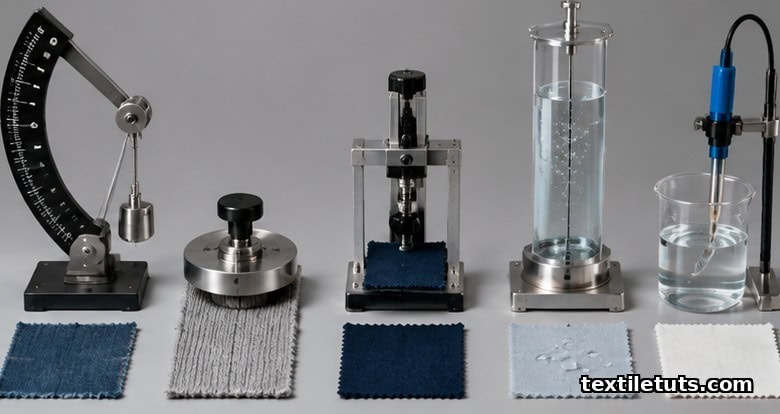

Categories of textile tests

Textile tests fall into five broad categories. A typical buyer specification will have 8–15 tests across these categories, with different tests for different fabric types and end uses.

1. Physical tests

Measure the structural and mechanical properties of the fabric or yarn.

• Mass per unit area (weight) – ISO 3801 (cut-and-weigh method) or ASTM D3776 (small swatch method). The most basic test, reported in g/m² (or oz/yd² for denim and similar).
• Thickness – ISO 5084 (under defined pressure). Reported in mm. Important for technical textiles, coated fabrics, and garments where the fabric thickness affects the construction.
• Tensile strength and elongation – ISO 13934-1 (strip method) or ASTM D5035 (strip), or ISO 13934-2 / ASTM D5034 (grab method). Reported in N (force at break) and % (elongation at break). The single most common strength test.
• Tear strength – ISO 13937 (wing tear) or ASTM D1424 (Elmendorf pendulum). Reported in N. Critical for woven fabrics where a small tear can propagate quickly.
• Bursting strength – ISO 13938-1 (hydraulic) for knits. Reported in kPa. Knits tear irregularly, so bursting is the standard.
• Abrasion resistance – ISO 12947 (Martindale) or ASTM D4966 (Martindale) or ASTM D4157 (Wyzenbeek). Reported as cycles to failure or as a visual grade at a defined cycle count.
• Pilling resistance – ISO 12945 (Martindale pilling) or ASTM D4970 (Martindale pilling) or ASTM D3512 (random tumble). Reported as a 1–5 visual grade after a defined cycle count.
• Yarn count – ISO 2060 (direct count) for spun yarns; ISO 1144 (linear density) for filament yarns.
• Yarn twist – ISO 2061 (untwist-retwist method).
• Fabric count (threads per unit length) – ISO 7211-1 (dissection method) or ASTM D3775.

2. Dimensional stability tests

Measure how the fabric changes with washing, drying, and exposure to heat and humidity.

• Dimensional change (shrinkage) on washing – ISO 5077 (procedure) plus ISO 6330 (domestic washing) or AATCC TM 135 (home laundering). Reported as % change in warp and weft directions after 1, 3, 5, or 10 wash cycles. The most common QC test for any washable fabric.
• Dimensional change on dry cleaning – ISO 3175 (dry-cleaning procedure). Reported as % change after a defined dry-clean cycle.
• Heat shrinkage – for synthetics, ISO 14704 or supplier-specific. Reported as % change after a defined heat treatment (typically 180 °C for polyester).
• Relaxation shrinkage – separate from full-wash shrinkage; measures the change after a 24-hour relaxation in standard atmosphere (20 °C, 65% RH). Important for loosely woven fabrics.
• Hygral expansion – change in dimensions between dry and wet states. Important for tailored garments where the fabric must hold its shape in wear.

3. Colorfastness tests

Measure whether a dyed or printed fabric holds its color under the conditions of use.

• Colorfastness to washing – ISO 105-C06 (single-cycle domestic laundering) and ISO 105-C08 (with peroxide, for bleach-containing detergents). Graded on a 1–5 gray scale for color change and a 1–5 gray scale for staining on adjacent multifiber fabric.
• Colorfastness to light – ISO 105-B02 (xenon arc, the most common) or AATCC TM 16 (xenon arc or carbon arc). Graded on a 1–8 blue scale.
• Colorfastness to rubbing (crocking) – ISO 105-X12 (crockmeter). Dry and wet crock, graded on a 1–5 gray scale.
• Colorfastness to perspiration – ISO 105-E04 (acid and alkaline). Graded on 1–5 gray scale for color change and staining.
• Colorfastness to water – ISO 105-E01. Graded on 1–5 gray scale.
• Colorfastness to chlorinated water (swimming-pool water) – ISO 105-E03. Important for swimwear fabrics.
• Colorfastness to sea water – ISO 105-E02. Important for swimwear and outdoor fabrics.

4. Chemical tests

Measure chemical residues, pH, and formaldehyde content, primarily for regulatory and sustainability compliance.

• pH of aqueous extract – ISO 3071. Required to be in 4.0–7.5 range for most apparel and home textile (per OEKO-TEX Standard 100 and most brand specifications) to avoid skin irritation.
• Formaldehyde content – ISO 14184-1 (free and hydrolyzed formaldehyde, water extraction method). The most common restricted substance. Limits per OEKO-TEX: ≤20 ppm for baby, ≤75 ppm for direct-skin contact, ≤300 ppm for outerwear.
• Heavy metals (extractable) – typically by ICP-MS or AAS. Restricted by OEKO-TEX, REACH (EU), and CPSIA (US). Different limits for different metals.
• Azo dyes that release carcinogenic amines – EN 14362-1 (general method) and EN 14362-3 (certain azo dyes that may release 4-AAB). 22 amines are banned under REACH Annex XVII.
• Allergenic and carcinogenic disperse dyes – DIN 54231. 9 dyes banned under REACH.
• Phthalates – for plastisol prints, coatings, and any PVC-containing textile. EN 15777 or similar.
• Per- and polyfluoroalkyl substances (PFAS) – increasingly restricted, especially for outdoor and water-repellent fabrics. Methods vary; ISO 23702-1 for PFOA and PFOS.
• Chlorinated phenols (PCP, TeCP) – banned in most jurisdictions. ISO 17070.
• Optical brightener content – qualitative screening, particularly important for “natural” or “undyed” claims.

5. Performance and end-use tests

Specific to the end use of the fabric.

• Water repellency (spray test) – ISO 4920. Graded 0–5 by the wetted pattern. The standard for outerwear and rainwear.
• Water resistance (hydrostatic head) – ISO 811. Reported in mm of water column. Important for waterproof fabrics.
• Water-vapor transmission (breathability) – ISO 15496 (inverted cup) or ASTM E96. Reported in g/m²/24h.
• Air permeability – ISO 9237. Reported in mm/s or cm³/cm²/s.
• Tensile strength of seams – ISO 13935-2 (seam tensile, woven). Reported in N.
• Seam slippage – ISO 13936 (fixed load method). Reported in mm of slippage at a defined load.
• Snagging resistance – for knit fabrics. ASTM D3939 (mace snag) or ISO 14704-style mace methods.
• Flame resistance – for protective clothing, children’s sleepwear, and contract textiles. NFPA 701, NFPA 1971, ISO 14116, EN 469, ASTM D6413, depending on end use.
• Antimicrobial activity – ISO 20743 (absorption method) or AATCC TM 100 for treated fabrics.

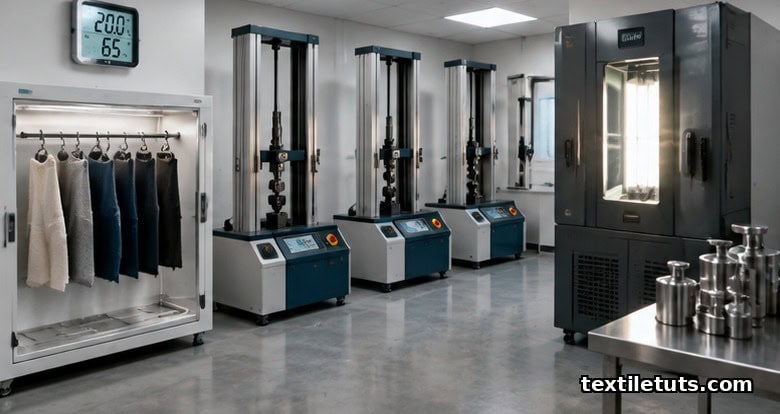

Lab infrastructure

A textile testing lab that runs a typical buyer specification (8–15 tests) needs a substantial investment in equipment, conditioning space, and trained staff. The core infrastructure includes:

• Conditioning room – maintained at 20 °C and 65% RH (ISO 139 standard atmosphere) for all physical tests. The single most important piece of lab infrastructure; without stable conditions, test results are not comparable to standard values.
• Tensile testing machine – universal testing machine (UTM) capable of running strip, grab, and seam tests at controlled rate of extension.
• Tear testing equipment – Elmendorf pendulum (most common) or tongue tear rig on the UTM.
• Abrasion testers – Martindale (for apparel and home textile) or Wyzenbeek (for upholstery, where the Wyzenbeek is the historical standard in North America).
• Pilling tester – Martindale with photographic grading, or random tumble pilling box.
• Colorfastness testing – wash wheel (for C06), xenon arc light fastness chamber (for B02, the most expensive piece of equipment in any color lab), crockmeter (X12), perspirometer (E04), and the gray scales and blue wool standards for grading.
• Chemical testing – pH meter, UV-Vis spectrophotometer (for formaldehyde and extractable chemicals), GC-MS or LC-MS/MS (for azo amines, PFAS, phthalates, the most expensive equipment in a chemical lab).
• Cutting and sample-prep dies – ASTM D5034 grab die, ISO 13934 strip die, ISO 12947 Martindale specimen cutter.
• Calibration standards – calibrated weights, dimensional standards, blue wool light-fastness standards, multifiber adjacent fabric for staining tests.

A small mill lab that runs only buyer-specified tests can be set up for USD 100,000–200,000 in equipment. A full-service accredited third-party lab (Intertek, SGS, Bureau Veritas, TÜV, QIMA) invests USD 2–10 million in equipment and runs several hundred different test methods.

Standardization bodies and their test methods

Three standards bodies dominate textile testing globally.

ISO (International Organization for Standardization)

The global standards body. ISO textile test methods are the international reference and are dominant in Europe, Asia, and most of the world. The ISO 105 series (colorfastness) and ISO 13934/13937/13938 series (strength) are the most-cited textile standards. ISO standards are adopted as national standards in most countries (BS EN ISO in the UK, DIN EN ISO in Germany, GB/T ISO in China) and are increasingly used by US brands specifying for global production.

AATCC (American Association of Textile Chemists and Colorists)

The US standards body, focused on colorfastness, dyeing chemistry, and performance testing. AATCC TM methods (e.g., AATCC TM 8 for crocking, AATCC TM 16 for light, AATCC TM 61 for wash) are dominant in US apparel and home-textile specifications. AATCC is now formally harmonized with ISO on most methods, with AATCC publishing equivalent ISO methods as TM 16.3 (light, xenon) and similar.

ASTM International

Originally American Society for Testing and Materials. ASTM textile standards are dominant in US industrial textiles, military and defense textiles, geosynthetics, and some US apparel categories (denim, workwear, performance wear). ASTM D5034/D5035 (tensile), D1424 (tear), D4966 (Martindale abrasion), and D4157 (Wyzenbeek) are widely cited.

For most tests, ISO, AATCC, and ASTM publish equivalent methods that are functionally interchangeable but differ in equipment specification, specimen size, and reporting format. A buyer specification will typically name the test method (“Colorfastness to wash per ISO 105-C06”) and the acceptance value (“4–5 minimum for color change”).

Accreditation and lab competence

Test results are only as reliable as the lab that produces them. A lab’s competence is assessed by accreditation to ISO 17025 (the international standard for testing and calibration laboratories). Major accrediting bodies include:

• A2LA (American Association for Laboratory Accreditation) – US
• UKAS (United Kingdom Accreditation Service) – UK
• DAkkS (Deutsche Akkreditierungsstelle) – Germany
• CNAS (China National Accreditation Service for Conformity Assessment) – China
• NABL (National Accreditation Board for Testing and Calibration Laboratories) – India

A2LA or UKAS accreditation requires the lab to demonstrate technical competence for each test method, regular proficiency testing (round-robin inter-lab comparisons), and a documented quality system. Many brands require their suppliers’ labs to be ISO 17025 accredited, or require that final pre-shipment testing be done by an accredited third-party lab (Intertek, SGS, Bureau Veritas, QIMA, TÜV).

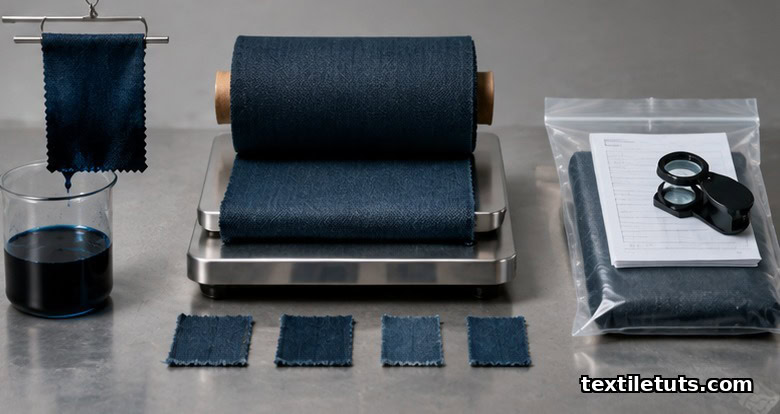

The testing workflow

A typical production batch goes through the following testing workflow:

• Pre-production – lab dips for color matching (the lab dyes a small sample of the bulk production recipe to confirm color is on target). Often includes a hand-feel and basic physical test on the first production lot.
• Inline / during production – the mill takes samples at regular intervals (every 1,000 m of fabric, or every shift) and tests weight, color, and basic physical properties to catch process drift.
• Pre-shipment – the mill runs the full buyer specification on a representative sample from the finished lot. If the spec is met, the lot is released for shipment. If not, the lot is held for rework or downgraded.
• Post-shipment (buyer-side) – the buyer may test a sample of the received lot (incoming inspection) or test garments made from the lot (pre-production sampling). Failure at this stage is the most expensive, because the fabric has already entered the supply chain.

Modern textile QC increasingly uses statistical process control (SPC) on the inline test data. The lab uploads test results to a database; the QC system plots them on a control chart; the production manager is alerted when a result goes out of control limits, and the production line is paused or adjusted before the next lot is made.

Frequently Asked Questions

What is the difference between ISO and AATCC test methods?

ISO is the global body; AATCC is the US body. They publish equivalent methods for most colorfastness, strength, and dimensional-stability tests. The methods are functionally interchangeable but differ in equipment specification, specimen size, and reporting format. Most buyer specifications name the test method explicitly (“ISO 105-C06” or “AATCC TM 61”) to avoid ambiguity. A test report will list the method used.

How long does a full buyer-spec test take?

A typical 8–15 test specification takes 3–7 working days end to end. Colorfastness tests (washing, light, rubbing) take 1–3 days each; light fastness (xenon arc) takes the longest at 2–3 days. Chemical tests (formaldehyde, azo amines, heavy metals) take 2–5 days depending on the method. A pre-shipment test batch that needs 10 tests done in 3 days requires a well-resourced lab or several tests run in parallel.

Do small mills need their own testing lab?

Not necessarily. Most small mills use a combination of in-house quick-tests (weight, color, basic strength) plus a third-party accredited lab for the full buyer specification. The third-party lab costs USD 50–500 per test, so a full buyer specification might cost USD 1,000–3,000 per shipment. For a small mill shipping a few shipments a month, this is often more cost-effective than maintaining an in-house lab. For a large mill with continuous production, an in-house lab becomes cost-effective at scale.

What is OEKO-TEX and how does it relate to textile testing?

OEKO-TEX is a certification system, not a test method. OEKO-TEX Standard 100 certifies that a finished textile has been tested against a list of regulated and unregulated harmful substances and is below the OEKO-TEX limits. The testing is done at OEKO-TEX member institutes (Hohenstein, AITEX, TESTEX, etc.) using standardized test methods (ISO, EN, DIN, etc.) for each substance. OEKO-TEX certification is widely required for babywear, underwear, and home textile in Europe and increasingly in North America.

Why does the same test give different results at different labs?

Several factors cause inter-lab variation: equipment differences (different manufacturers’ tensile machines, different xenon arc chambers), calibration differences (how often the equipment is calibrated, what reference standards are used), operator technique (subtle differences in mounting specimens, judging gray-scale ratings), and conditioning differences (how stable the lab’s temperature and humidity are). ISO 17025 accreditation with regular proficiency testing reduces but does not eliminate inter-lab variation. Buyer specifications often specify a tolerance (“4 minimum” rather than “4 exact”) to allow for this natural variation.

References

• Testex (accredited textile testing laboratory). Improving Textile Testing Lab Efficiency: A Comprehensive Guide from Equipment Selection to Quality Control. https://www.testextextile.com/improving-textile-testing-lab-efficiency-a-comprehensive-guide-from-equipment-selection-to-quality-control/ – lab infrastructure, equipment selection, and workflow methodology.
• QIMA (accredited third-party testing lab). Textile Testing Labs: A Guide for Manufacturers. https://www.qima.com/blog/lab-testing/textile-testing-labs-a-guide-for-manufacturers, practical guide to testing requirements for textile manufacturers.
• ASTM International. Textile Standards and Publications Catalog. https://store.astm.org/products-services/standards-and-publications/standards/textile-standards.html, index of ASTM textile test methods (D13 committee).
• ISO 139:2005, Textiles, Standard atmospheres for conditioning and testing – defines the 20 °C / 65% RH standard atmosphere used in all physical textile tests.
• ISO/IEC 17025:2017, General requirements for the competence of testing and calibration laboratories – the international standard for lab accreditation.
• OEKO-TEX Standard 100, https://www.oeko-tex.com, restricted substance list and limits for textile certification.

This article is the working reference for textile testing. Editorial by Iftay Khairul Alam, TextileTuts. Sources: Testex (lab methodology), QIMA (manufacturer guide), ASTM textile standards catalog, ISO 139, ISO/IEC 17025, OEKO-TEX Standard 100 as cited.
