Weft Knit vs Warp Knit: Structural Differences and Properties

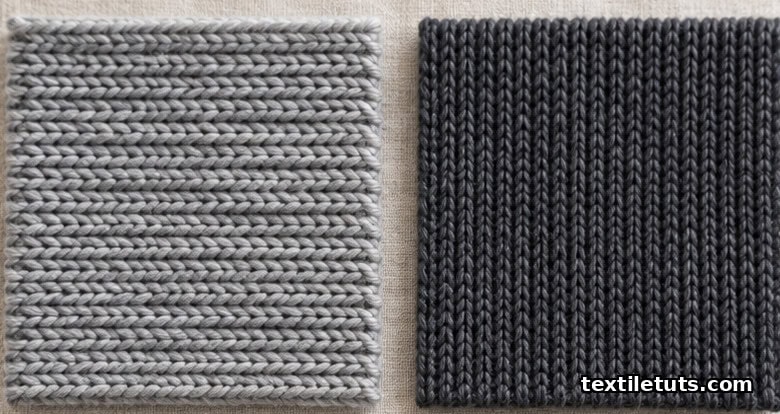

Weft knitting and warp knitting are the two fundamental families of knitted fabric, distinguished by the direction in which the yarn travels as the fabric is formed. In weft knitting, the yarn runs horizontally (across the width of the fabric) and forms loops in successive courses; in warp knitting, the yarn runs vertically (along the length of the fabric) and forms loops in successive wales. The structural difference drives all the other differences, extensibility, stability, hand, drape, end-use, machine technology, and cost.

Weft knitting is by far the larger of the two markets (the majority of knitwear, t-shirts, jersey, and casual apparel is weft-knitted). Warp knitting is the smaller but technically demanding segment (lace, net, technical textiles, sportswear mesh, automotive interiors). Understanding when to specify which is one of the most important decisions in knit fabric selection.

Weft knitting: the larger family

In weft knitting, a single yarn (or a small number of yarns) feeds horizontally across the needles, forming a row of loops in one course. The fabric grows downward (in the wale direction) as each successive course is formed below the previous. The fabric can be cut and sewn in any direction without unraveling, because each course is held together by the loops of the adjacent courses.

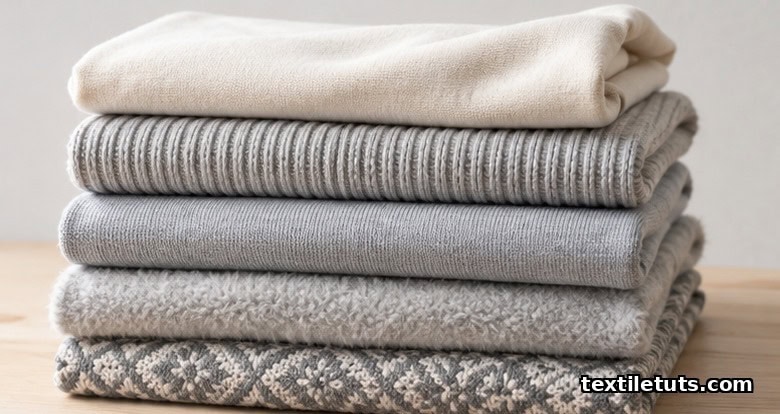

The most common weft-knit structures are:

• Plain jersey (single jersey) – the simplest and most common weft-knit structure. One set of needles, all knitting in the same direction. The face side shows vertical wales; the back side shows horizontal courses. Lightweight, soft, extensible, but curls at the cut edges (which is why jersey garments are often sewn with a hem or binding). Used for t-shirts, dresses, lightweight tops, and lining.
• Rib – two sets of needles (front bed and back bed) alternating knit and tuck. The alternating columns produce vertical ribs on both sides of the fabric. Rib is more extensible in the width direction than jersey and does not curl at the edges. Used for cuffs, neckbands, waistbands, and form-fitting garments.
• Interlock – a double-knit version of rib, with two interlocked layers of plain jersey. More stable than rib, with a smooth face on both sides. Used for premium knitwear, polo shirts, and high-quality basics.
• Piqué – a knit structure with a textured surface (small geometric patterns). Used for polo shirts and sportswear.
• Fleece – jersey or interlock with a brushed back. Used for sweatshirts, hoodies, and casual sportswear.
• Jacquard jersey – a multi-color knit structure where different yarns form different patterns in different courses. Used for patterned t-shirts, dresses, and knitwear with embedded designs.

Weft knitting is done on circular knitting machines (cylindrical needle beds, the dominant technology for jersey and most knitwear) or flat-bed machines (flat needle beds, used for shaped garment panels like sweater fronts and backs). Circular machines produce tubular fabric that is slit open and laid flat; flat-bed machines produce shaped panels directly.

The weft-knit process is fast, versatile, and low-cost. A modern circular knitting machine can produce 1–3 meters of jersey per minute, depending on the diameter and gauge. The same machine can switch between structures (jersey, rib, interlock) with minor mechanical changes, allowing flexible production.

Warp knitting: the technical family

In warp knitting, multiple yarns (one per wale) feed vertically down through the needles. Each yarn forms a loop in every course, but the loops are formed by guiding the yarns around the needles in a complex pattern determined by the warp guide bar. The fabric grows in the wale direction (length) as the needles move to form each new course.

Warp knitting is more complex than weft knitting but produces fabric with very different properties:

• Less extensible in both directions. Weft knit can stretch 50–100% in the width; warp knit stretches only 10–30%.
• More dimensionally stable. Warp-knit fabric does not unravel when cut, and does not lose shape with washing the way weft knit does.
• Higher density and tighter structure. Warp-knit fabric is typically denser than equivalent weft knit.
• Higher production speed for technical fabrics. A modern warp-knit machine runs at 2,000–4,000 courses per minute, much faster than a circular weft-knit machine.
• Higher cost for setup and machine, but lower cost per meter at high volumes because of the speed.

The most common warp-knit structures are:

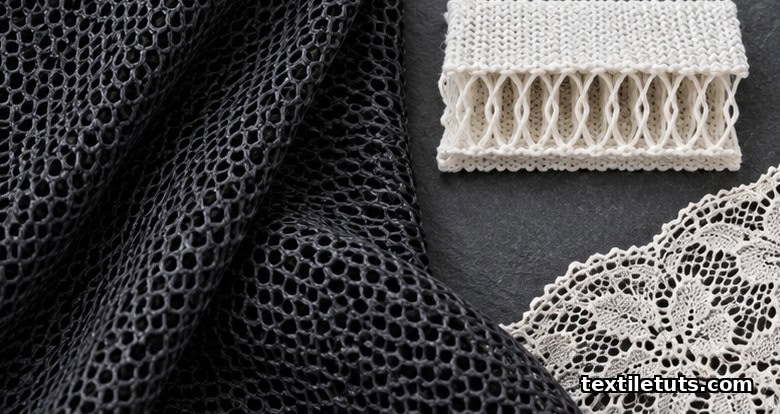

• Tricot – the most common warp-knit structure. Lightweight, smooth, with good lengthwise stability. Used for lingerie, lining, and lightweight apparel.
• Raschel – a more open, lace-like warp-knit structure produced on a Raschel machine. Used for net, lace, mesh, technical textiles, and sportswear.
• Chain or pillar stitch – straight vertical chains of loops, used as a base for more complex structures.
• Insertion warp knit – warp knit with additional weft or warp yarns inserted for strength or stability. Used for technical textiles, geotextiles, automotive interiors.
• Spacer fabric – 3D warp-knit structure with two face layers connected by spacer yarns. Used for automotive seating, sportswear padding, and filtration.

Warp knitting requires more sophisticated machinery than weft knitting. A tricot machine has 1–4 guide bars that move the yarns around the needles in precise patterns; a Raschel machine can have 6–60 guide bars for complex patterns. The setup is longer and more complex than a weft-knit machine, but the production rate is high enough that warp knitting is the most cost-effective way to make large volumes of technical or lace fabrics.

Properties comparison

For the same fiber and yarn count, the two families have very different properties:

These differences drive the end-use choices: weft knit for soft, comfortable, casual apparel; warp knit for technical, structured, high-volume applications.

End-use applications

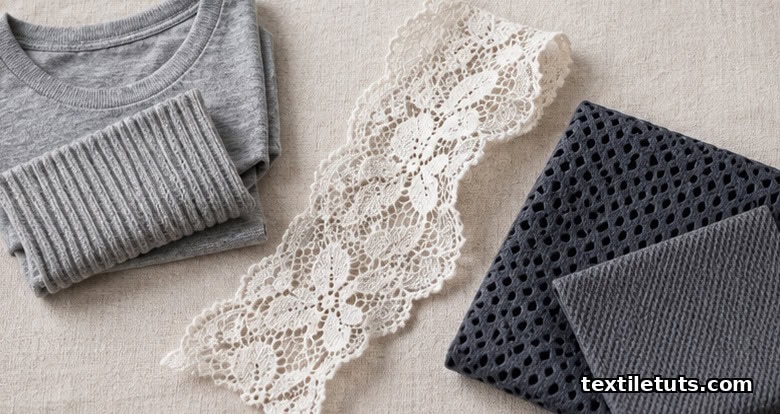

The dominant end uses for each family:

Weft knit

• T-shirts, tops, casual apparel – plain jersey is the standard.
• Sweaters, cardigans, knitwear – flat-bed weft knitting produces shaped panels.
• Cuffs, neckbands, waistbands – rib knit.
• Underwear, sleepwear – fine-gauge jersey, often with elastane.
• Activewear – performance jersey with moisture-management finishes.
• Hosiery – fine-gauge circular knit, often with elastane.
• Casual sportswear – fleece, French terry, piqué.

Warp knit

• Lingerie and lining – tricot is the standard for these applications.
• Athletic mesh – Raschel mesh for sportswear ventilation.
• Lace and net – Raschel lace for apparel and home textiles.
• Automotive interiors – headliners, seat fabrics, door panels (warp knit with insertion).
• Geotextiles – warp-knit geogrids and geocomposites.
• Filtration – warp-knit filter media.
• Spacer fabrics – 3D warp-knit for automotive seating, sportswear padding.

Choosing between weft and warp knit

Five questions to ask when specifying a knit fabric:

• How much stretch is needed? High stretch (50%+) → weft. Low stretch (≤20%) → warp.
• How important is dimensional stability? Critical (technical textiles, automotive) → warp. Less critical (casual apparel) → weft.
• What is the production volume? Low volume, many styles → weft (more flexible). High volume, one style → warp (faster).
• What hand is required? Soft, fluid → weft. Crisp, structured → warp.
• Is the fabric for apparel or technical use? Apparel → weft (usually). Technical → warp (usually).

For most apparel end uses, weft knit is the right answer. For technical end uses, warp knit is the right answer. There are exceptions (warp-knit athletic apparel, weft-knit automotive headliners) but the general pattern holds.

Frequently Asked Questions

Which is more common, weft or warp knit?

Weft knit by a wide margin. Estimates vary, but weft knit typically accounts for 70–80% of global knit fabric production. The t-shirt is the most-produced knit fabric in the world, and t-shirts are weft-knit jersey. Warp knit dominates the more technical applications (lace, mesh, automotive) but is a smaller share of total volume.

Is warp knit more expensive than weft knit?

The machine is more expensive (a tricot or Raschel machine costs 3–10× a circular weft-knit machine), and the setup is more complex (more time, more skill). But the production rate is much higher (10–30 m/min warp vs. 1–3 m/min circular weft), so at high volume the per-meter cost can be lower. For low-volume production, warp knit is significantly more expensive.

Does warp knit unravel if cut?

No, and this is one of its key advantages. Each loop in a warp-knit fabric is held by the loops above, below, and beside it. Cutting a warp-knit fabric leaves a clean edge that does not unravel. Weft knit, by contrast, can run (a snag can pull a column of loops) but does not unravel in the way woven fabric does, the loops are interlocked.

Can warp knit be used for apparel?

Yes, especially for lingerie, athletic apparel, and structured knitwear. Tricot is the standard for lingerie because it is smooth, lightweight, and has good lengthwise stability. Raschel mesh is the standard for athletic ventilation panels. Warp knit does not work well for soft, draped knitwear (sweaters, t-shirts) because it lacks the stretch and fluid drape of weft knit.

Is warp knit faster to produce than weft knit?

Yes, typically 5–10× faster in terms of meters per minute. A modern Raschel machine can run at 4,000+ courses per minute, producing 10–30 m of fabric per minute. A modern circular weft-knit machine runs at 1–3 m/min, depending on diameter and gauge. The tradeoff: warp-knit machines are more expensive, and the setup is more complex.

References

• Academia.edu, Warp vs Weft Knitting (technical reference paper). https://www.academia.edu/5904406/Warp_vs_Weft_Knitting, comparative analysis of warp and weft knit structures, properties, and applications.
• ISO 8388:1998, Knitted fabrics, Types, Vocabulary.
• ISO 14704:2016, Knitted fabrics, Determination of bursting strength.
• ISO 16322-1:2005, Textiles, Determination of spirality after laundering, Part 1: Percentage of wale spirality change in knitted garments.
• ASTM D2594-22, Standard Test Method for Stretch Properties of Knitted Fabrics Having Low Power Stretch.

This article is the working reference for the weft vs warp knitting comparison. Editorial by Iftay Khairul Alam, TextileTuts. Sources: Academia.edu (Warp vs Weft Knitting paper), ISO 8388 / 14704 / 16322, ASTM D2594 as cited.
