Compact Spinning

ByIftay Khairul Alam Hours Updated:

Compact spinning is a modification of the conventional ring-spinning process that condenses the fiber strand after the front drafting roller and before the twist insertion point, eliminating the spinning triangle and producing a yarn with significantly higher strength, lower hairiness, and better weaving performance. Developed commercially in the 1990s (Suessen’s EliTe compact system, Rieter’s ComforSpin, Zinser’s Air-Com-Tex), compact spinning is now the standard for high-quality ring-spun yarns in weaving applications and is increasingly the default for knit and denim warp yarns as well.

The key innovation is the elimination of the spinning triangle, the small zone of partially uncontrolled fiber at the front drafting roller where the twist converges to a point before being drawn into the yarn. In conventional ring spinning, fibers on the edge of the strand can escape the twist and become fly or surface hair, producing a hairy yarn with lower strength. In compact spinning, the fiber strand is condensed (typically by suction through a perforated apron or lattice) so that all fibers enter the twist zone under control, producing a denser, smoother, stronger yarn.

Why compact spinning matters

The improvements from compact spinning are real and measurable. Compared to conventional ring-spun yarn of the same count and fiber, compact-spun yarn typically has:

  • 10–25% higher tensile strength, depending on the fiber and count. The strongest compact-spun yarns approach the strength of comparable rotor-spun yarn but with the surface quality of ring-spun.
  • 40–60% lower hairiness (measured by the number of protruding fibers per unit length). This is the most dramatic single improvement and is what most directly affects downstream performance.
  • Better yarn evenness (lower CV%) – the compact zone reduces short-term count variation.
  • Fewer end breaks in weaving – lower hairiness means fewer fibers escape the yarn to form weak spots, and the higher strength means the yarn survives the cyclic stresses of weaving.
  • Better fabric appearance – the lower hairiness produces a cleaner fabric surface, which prints and dyes more evenly and looks more “premium.”
  • Better pilling resistance – fewer surface fibers means fewer available to form pills.

The trade-off is cost. A compact-spinning machine is more expensive than a conventional ring-spinning machine (typically 20–40% more for the same spindle count), and the suction and apron components require maintenance. The yarn commands a 10–30% price premium over conventional ring-spun, which the downstream value (fewer end breaks, better fabric) recovers for weaving mills but not always for knitters.

How compact spinning works

The compact-spinning process is a modification of the standard ring-spinning sequence:

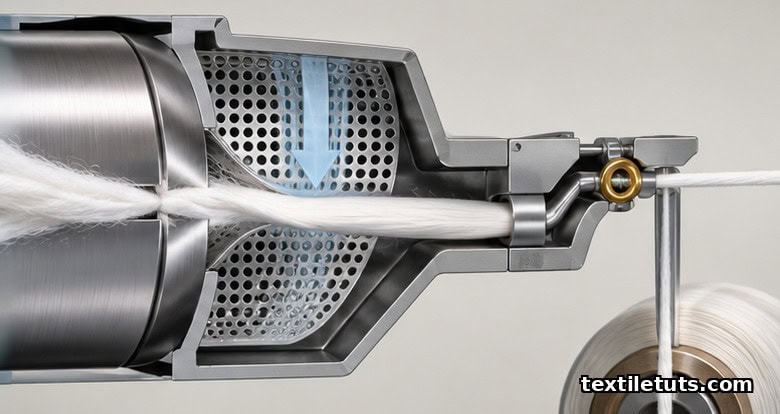

Cutaway diagram of the compact spinning zone showing the front roller, perforated suction apron, condensed fiber ribbon, lappet guide, and traveler.
  • Back drafting rollers draft the roving to a coarser strand.
  • Middle/apron drafting continues the draft.
  • Front drafting rollers complete the draft to the final count.
  • NEW: compact zone – between the front roller and the twist insertion point, the fiber strand is condensed by suction through a perforated apron (lattice) or by a vibrating skewer. The fiber strand is collapsed to its densest possible configuration.
  • Twist insertion – the now-condensed strand passes through the lappet guide and the traveler, where the ring inserts twist. Because all fibers are now under control (no spinning triangle), every fiber is incorporated into the yarn body.
  • Winding onto the cop as in conventional ring spinning.

The compact zone is the key innovation. Three competing commercial systems implement it differently:

Suessen EliTe (perforated apron)

The original commercial compact-spinning system, introduced in 1995. The fiber strand passes through a U-shaped perforated apron, and suction applied through the perforations condenses the strand laterally. The EliTe system is the most widely installed compact-spinning technology.

Rieter ComforSpin (perforated drum with lattice)

Introduced by Rieter in 2002. The fiber strand passes over a suction drum with a perforated surface, condensed by suction through the drum, then through a delivery lattice. ComforSpin is known for high-speed operation (up to 25,000 rpm spindle speed on modern frames).

Zinser Air-Com-Tex (pneumatic condensing)

Introduced by Zinser (now part of Saurer). The fiber strand is condensed by a pneumatic suction slot rather than a perforated apron. The Air-Com-Tex system is known for ease of retrofit on existing ring frames.

All three systems produce yarn with similar property improvements over conventional ring-spun. The choice between them is usually based on which is offered on the machine the mill already owns (Suessen and Zinser are typically sold on new frames, while retrofit kits from Zinser and others can be added to existing frames).

Yarn properties in detail

Standardized test methods for compact-spun yarn properties:

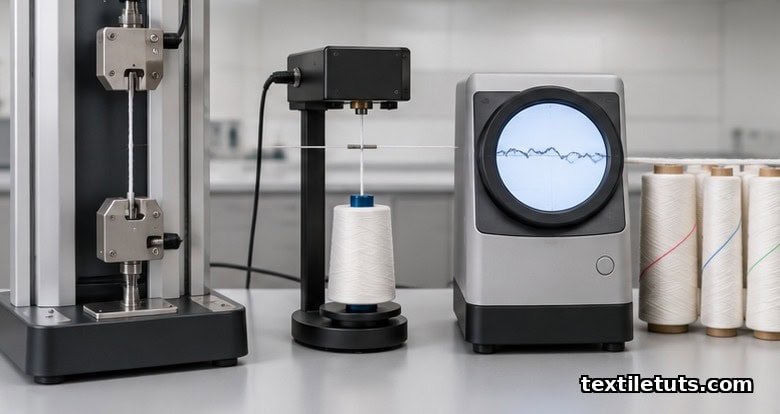

Textile testing lab bench with tensile tester, hairiness meter, and evenness tester arranged for compact-spun yarn quality control.
  • Tensile strength and elongation – ISO 2062 (yarn tensile). Compact yarn shows 10–25% higher breaking strength and similar or slightly lower elongation at break than conventional ring-spun at the same count.
  • Hairiness – measured by the Zweigle G566 hairiness meter (or equivalent). The number of protruding fibers per meter of yarn is reported. Compact yarn has 40–60% fewer protruding fibers than conventional ring-spun at the same count.
  • Evenness – Uster Evenness Tester (or equivalent), reporting CV% (coefficient of variation of mass per unit length). Compact yarn typically shows 5–15% lower CV% than conventional ring-spun at the same count.
  • Yarn count – ISO 2060. Compact yarn has the same count as the conventional yarn it replaces; the count is set by the drafting, not the compact zone.
  • Twist – ISO 2061. Compact yarn uses the same twist multiplier as conventional ring-spun for the same end use.

Compact yarn’s improvement is most pronounced at finer counts (Ne 40 and finer), where the spinning triangle is proportionally larger relative to the yarn cross-section. At coarser counts (Ne 12 and below), the improvement is smaller but still meaningful.

End uses

Compact-spun yarn is the standard for high-quality applications where the premium is justified:

Flat-lay of four premium compact-spun fabric swatches: fine shirting, indigo denim, merino knit jersey, and bed linen on neutral linen backdrop.
  • Premium woven apparel – dress shirts, suits, fine shirting. The low hairiness produces a clean fabric surface that dyes evenly and prints sharply.
  • Premium denim – especially for warp yarns where low hairiness reduces the fluff in the weaving shed and improves fabric appearance.
  • High-quality knitwear – compact-spun weft knits pill less and feel smoother than conventional ring-spun knits.
  • Technical textiles – geotextiles, filtration fabrics, automotive textiles where strength and consistency are critical.
  • Premium home textiles – bed linen, fine table linen.

Compact spinning is less common in low-end applications (basic t-shirts, low-cost denim, utility fabrics) where the price premium cannot be recovered. For these end uses, conventional ring-spun or rotor-spun remains the standard.

Frequently Asked Questions

Is compact-spun yarn stronger than rotor-spun?

Yes, typically. Compact-spun yarn is 10–25% stronger than conventional ring-spun, and ring-spun is generally 10–20% stronger than rotor-spun. So compact-spun is typically 20–40% stronger than rotor-spun at the same count and fiber. Rotor-spun has a different structure (more wild fibers, less oriented) that limits its strength even when the count and twist are matched.

Can existing ring-spinning frames be retrofitted to compact spinning?

Yes, but the retrofit is significant. The major compact-spinning system vendors (Suessen, Zinser, others) offer retrofit kits for their own and competitors’ ring frames. A retrofit involves replacing the front drafting zone with a compacting element, adding suction, and modifying the lappet guide and traveler path. The retrofit typically costs 30–50% of a new compact-spinning frame and can be done on-site, but it requires a 2–4 week production stop and skilled technical staff.

Does compact spinning reduce yarn count variation?

Yes, modestly. The compact zone stabilizes the fiber strand before twist insertion, which reduces short-term count variation. The CV% (coefficient of variation of mass per unit length) is typically 5–15% lower for compact yarn than for conventional ring-spun at the same count and fiber. The improvement is more pronounced for lower-quality fiber (Indian cotton vs. Egyptian, for example), where the compact zone helps compensate for fiber-length variation.

Does compact-spun yarn pill less?

Yes, typically. Pilling is caused by short fibers working loose from the yarn surface and forming pills. Compact yarn has fewer short fibers on the surface (because the spinning triangle is eliminated), so fewer are available to form pills. The improvement is 30–50% on the standard pilling tests (ISO 12945 Martindale or ASTM D4970).

Is compact spinning worth the price premium?

For weaving applications, almost always yes. The reduced end breaks and improved fabric appearance pay for the yarn premium several times over in a weaving mill. For knitting, it depends on the end use, premium knitwear (cashmere blends, fine-gauge jersey) justifies the premium; basic t-shirt jersey does not. For dyed/printed apparel where the fabric appearance matters, compact yarn’s lower hairiness produces a noticeably better result and is worth the premium.

References

  • Austin Publishing Group, Compact Spinning System for Fine Count Egyptian Cotton Yarns (textile engineering peer-reviewed paper). https://austinpublishinggroup.com/textile-engineering/fulltext/arte-v1-id1005.php, compact-spinning system and yarn property analysis.
  • Suessen, EliTe Compact Spinning System technical documentation. https://www.suessen.com, primary commercial system documentation.
  • Rieter, ComforSpin compact spinning system documentation. https://www.rieter.com, system documentation for the perforated-drum approach.
  • ISO 2062:2009, Textiles, Yarns from packages, Determination of single-end breaking force and elongation at break using constant rate of extension (CRE) tester.
  • ISO 2061:2015, Textiles, Determination of twist, Direct counting method.
  • ISO 2060:1994, Textiles, Yarn from packages, Determination of linear density (mass per unit length) by the skein method.
  • ISO 12945-1:2020, Textiles, Determination of fabric propensity to surface fuzzing and to pilling, Part 1: Pilling box method.

This article is the working reference for compact spinning. Editorial by Iftay Khairul Alam, TextileTuts. Sources: Austin Publishing Group (peer-reviewed textile engineering paper), Suessen and Rieter technical documentation, ISO 2062 / 2061 / 2060 / 12945 standards as cited.
