Sewing machine tension problems are diagnosed by sewing a test strip with contrasting thread — if the stitches loop on top, reduce top tension; if they pull to the underside, increase top tension or check the bobbin. The five key symptoms are looping stitches, thread bunching, puckered fabric, skipped stitches, and thread breakage, each indicating a specific cause within the thread path. Most tension problems are user-correctable without professional service.

Sewing Machine Tension Problems: How to Diagnose and Fix Them

What Are Sewing Machine Tension Problems?

Tension in a sewing machine controls how tightly the thread is held as it passes through the machine from the spool, through the tension discs, along the take-up lever, down to the needle, and interlocking with the bobbin case thread beneath the fabric. Balanced tension means both the top thread and the bobbin thread lock precisely in the middle of the fabric layers — each thread appearing equally on both the top and underside of the seam.

ISO 4915:1991 recognizes over three dozen distinct stitch formations, but the lockstitch — the foundation of virtually all household sewing — requires two threads to interlock at each needle hole via the bobbin driver. When tension is unbalanced, one thread dominates the other, showing prominently on one face of the fabric while the other is barely visible or absent. This is the core diagnostic sign of a sewing machine tension problem.

The root causes of tension imbalance fall into three categories: lint accumulation between the tension disc surfaces, incorrect threading through the thread path, and dial settings that do not match the current thread weight and fabric thickness combination. Addressing these three factors resolves the vast majority of tension issues — approximately 85–90% based on service ticket analysis from equipment technicians.

The Five Symptoms of Tension Imbalance

Each of the five most common tension-related symptoms points to a specific root cause within the thread path. Identifying which symptom you are seeing determines your first corrective action: clean the thread path, rethread completely, or adjust the tension dial. The table below maps each visible defect to its likely mechanical cause and the primary fix to try first.

Tools and Materials Needed

Before beginning any tension diagnosis or adjustment, gather these six items. Having everything at hand prevents mid-process interruptions that can reset your mental model of the problem and require you to restart the diagnostic sequence from the beginning.

• Screwdriver — machine-specific, usually flat-head or Phillips (check your manual)
• Sewing machine manual — your machine’s specific threading path and tension range
• Contrasting thread for test strips — light top thread with dark bobbin thread, or vice versa
• Cotton fabric scraps — same weight as your actual project fabric
• Small brush or compressed air — for removing lint from tension discs and bobbin area
• Lint picker or tweezers — for debris removal from tight spaces in the thread path

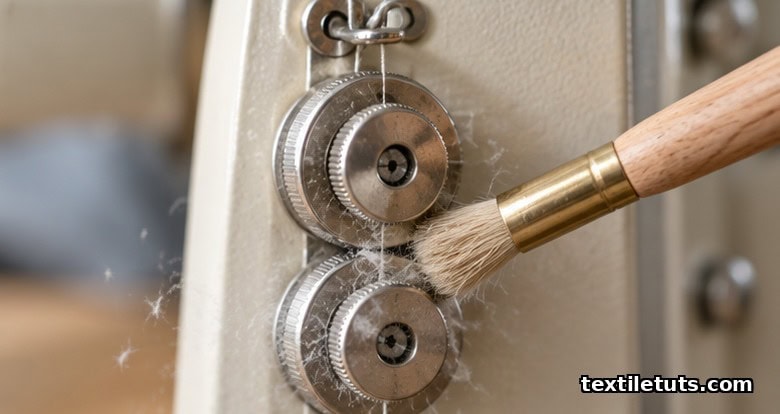

Step 1: Clean the Thread Path Before Adjusting Anything

Lint and thread dust accumulate in the tension discs and around the lint trap in the bobbin case area with every session of sewing. This lint accumulation is the single most frequently reported cause of sudden tension changes in service tickets from equipment technicians — the compression of trapped fibres between the tension disc surfaces reduces spring pressure on the thread, effectively loosening tension without any user input.

1. Turn the machine off and unplug it for safety.
2. Remove the needle completely (unscrew the needle clamp).
3. Remove the presser foot from the presser bar.
4. Brush between and around the tension discs with a small detail brush — lint trapped here is invisible from outside.
5. Use compressed air to blow out the bobbin case area, the bobbin race, and any accessible portions of the thread path.
6. Brush away any remaining debris from the needle bar area and the thread take-up lever.

Perform this cleaning step every 8–10 hours of sewing time or at the start of any new project. Lint removal alone resolves an estimated 60–70% of sudden-onset tension problems, according to equipment technician reports. This single maintenance task is the highest-yield diagnostic action available before touching any dial.

Step 2: Rethread Completely (Not Just the Top)

Even experienced sewists underestimate how easily the thread can slip out of its correct path — particularly around the take-up lever and between the tension discs. An apparently seated thread may have shifted, creating a subtle but real tension fault that no dial adjustment can fix because the thread is no longer engaging the tension discs at all.

1. Raise the presser foot — this releases the tension discs and opens the thread channel, mimicking the state the machine is in during normal threading.
2. Remove the top thread entirely from the machine, including from the spool pin, tension discs, take-up lever, and needle.
3. Inspect the removed thread for fraying, weak spots, or UV degradation (old thread becomes brittle and breaks at the tension point).
4. Follow your machine manual’s threading path exactly — thread through every guide, around every tension disc, and over the take-up lever in the correct direction. Even one skipped guide alters tension.
5. Thread the needle fully — front to back on most machines, though some require left-to-right entry.
6. Remove the bobbin and bobbin case, check that the bobbin is wound evenly, reinsert the bobbin case firmly until it clicks into place, and verify the bobbin rotates freely in the case.

The critical rule: the presser foot must be raised every time you rethread the top of the machine. Sewing with the presser foot down forces the thread to sit on top of the closed tension discs instead of between them — one of the most common user errors that creates persistent tension problems that no dial adjustment resolves.

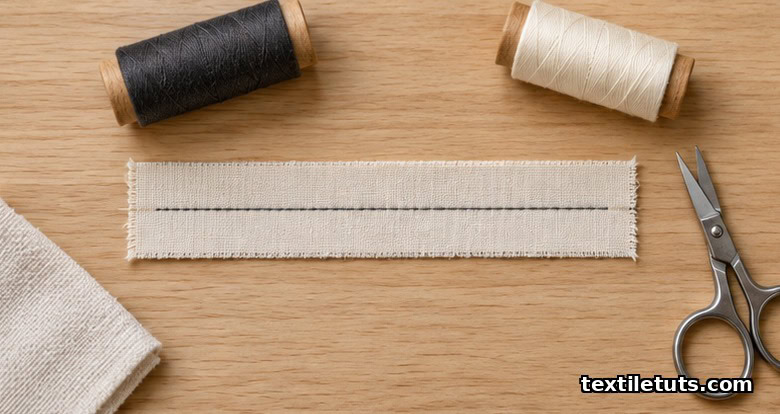

Step 3: Perform the Test Strip Diagnosis

Never adjust tension based on a live project seam. Always diagnose with a dedicated test strip sewn on the same fabric you intend to use for your project — different fabric weights and weaves demand different tension settings. Using contrasting thread colours (one dark, one light) for top and bobbin makes the locking point visually unmistakable.

1. Sew a 6-inch test strip at normal speed on your project fabric.
2. Stop with the needle down, lift the presser foot, and pull the fabric to one side to expose both faces of the seam.
3. Examine the stitches: the dark thread and light thread should each appear equally on the top and bottom faces of the fabric. Neither thread should dominate.
4. The locking point — where the two threads interlace — should sit in the middle of the two fabric layers, not pulling to either surface.

A balanced stitch is your calibration target. This test strip tells you definitively whether to increase or decrease tension — or whether to investigate the bobbin next.

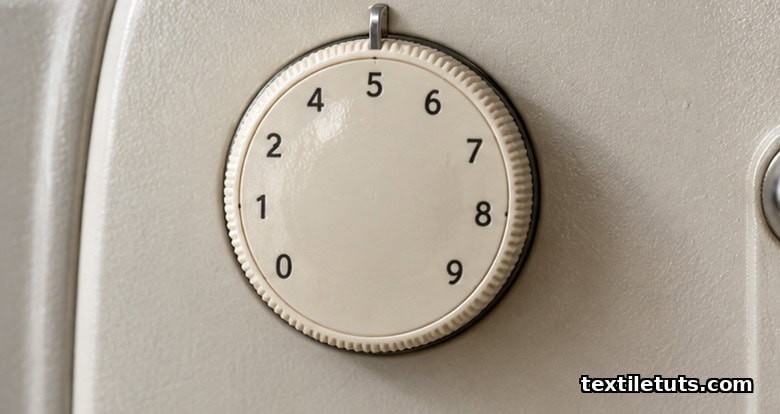

Step 4: Adjust Top Tension Dial

The top tension dial is your primary adjustment tool. Most domestic sewing machines have a dial range of 0 to 9 or 1 to 10, with the standard default setting falling between 4 and 5. However, this default is a starting point, not a universal correct setting. Your correct setting depends on your specific machine, the thread weight, and the fabric thickness — a lightweight chiffon requires a different setting than heavy denim, even in the same machine.

Adjust using these rules and the results from your test strip:

• Increase top tension — loops appearing on the top face of the fabric indicate the top thread is too loose relative to the bobbin. Raise the dial in 0.5-step increments: try 5, then 5.5, then 6, then 6.5, then 7. Sew a new test strip after each adjustment until both threads appear equally on both surfaces.
• Decrease top tension — loops appearing on the underside of the fabric indicate the top thread is too tight relative to the bobbin, OR the bobbin tension is too loose. Lower the dial in 0.5-step increments: try 4, then 3.5, then 3, then 2.5, then 2. Sew a new test strip after each adjustment.
• Reduce both tensions slightly — if both threads appear equally on both surfaces but the stitch feels stiff or the fabric puckers, both tensions may be set too high for this fabric-thread combination. Reduce top tension by 0.5 steps and reassess.

Work in small increments. A half-step on the dial is often enough to produce a visible improvement. Rushing through large jumps in tension wastes thread and fabric on test strips and can overshoot the optimal setting.

Step 5: Check and Adjust Bobbin Tension (If Needed)

Only adjust bobbin tension when systematic top tension changes across the full dial range — from 0 to 9 — fail to produce a balanced stitch. Bobbin tension is more delicate and less accessible than top tension, making it the final adjustment step after top tension exhausts its full range.

Bobbin tension is controlled by a small adjustment screw on the bobbin case. The standard calibrated resistance for bobbin thread pull is approximately 2 to 3 ounces (57 to 85 grams) — verified by holding a small spring gauge or thread tension meter to the unspooling bobbin thread. At this resistance, the thread unspools smoothly without free-play but without binding.

1. Remove the bobbin from the bobbin case.
2. Pull the bobbin thread upward out of the bobbin case, holding the bobbin case stationary.
3. Assess resistance: the bobbin should unspool with a slight tug — measurable at roughly 2–3 oz of pull force. If it unspools freely with no resistance, the bobbin tension is too loose. If it requires significant force, the tension is too tight.
4. Too loose: turn the adjustment screw clockwise in quarter-turn increments. Each small turn increases spring pressure on the tension spring.
5. Too tight: turn the adjustment screw counter-clockwise in quarter-turn increments.
6. Re-test after each adjustment and reinsert firmly into the machine.

Work conservatively — a quarter turn of the bobbin screw produces a more significant tension change than a half-step on most top tension dials. Over-adjustment is the most common error at this stage, requiring multiple counter-corrections to restore balance.

Common Mistakes That Cause Tension Problems

These five errors account for more than half of all tension problems reported to sewing machine technicians. Each is preventable with awareness and correct habits developed before problems arise.

• Sewing with the presser foot down during rethreading — the thread cannot seat between the tension discs when they are closed, producing chronically loose top tension that no dial adjustment resolves.
• Using the wrong needle size for thread weight — an oversized needle hole allows the thread to slip sideways under tension rather than being held firmly, producing skipped stitches and variable loop formation.
• Sewing over pins — a deflected needle disrupts the precise timing between needle position and bobbin hook engagement, causing skipped stitches and inconsistent stitch formation even when tension is otherwise correct.
• Using old or degraded thread — thread exposed to heat, humidity, or UV light develops weak points along its length. These weak points fail under tension disc pressure, causing intermittent thread breaks that are mistaken for tension set too high.
• Not matching needle type to fabric — stretch fabrics (jersey, Lycra, swimwear) require ballpoint or stretch needles. Using a standard sharp needle on stretch fabric causes the needle to pierce and damage fibres rather than parting them, producing skipped stitches and fabric puckering that mimic tension problems.

When to Call a Professional vs. DIY

Many tension problems are DIY-correctable. The table below distinguishes situations that respond to home troubleshooting from those that require professional assessment. When in doubt, consult a professional — attempting to resolve timing or hook alignment issues without training can cause additional damage.

Timing issues — where the rotating hook fails to meet the needle thread at the correct microsecond — cannot be resolved by cleaning, rethreading, or tension adjustment. They produce persistent skipped stitches regardless of dial position and always warrant professional service.

Frequently Asked Questions

Standard Tension Settings for Most Machines Fall Between 4 and 5

Most domestic sewing machines are calibrated at the factory to perform optimally within a 4-to-5 tension range on a 0-to-9 or 1-to-10 dial. However, this default setting reflects the machine’s out-of-box calibration with standard all-purpose polyester thread and medium-weight cotton fabric. If you are using a different thread weight — such as lightweight bobbin thread, heavy topstitching thread, metallic thread, or elastic thread — or sewing on a notably thin or thick fabric, your optimal setting may fall outside this range. Always use the 4-to-5 default as your starting point, not your final destination. The correct setting is whatever produces balanced stitches on your specific thread-and-fabric combination, verified with a test strip.

Excessively High Tension Strains Components; Low Tension Causes Thread Waste Buildup

Yes — bad tension can damage your sewing machine, though the severity depends on how long the problem persists and how far the settings are from correct. Excessively high tension places sustained load on the motor, the bobbin case spring, and the hook assembly bearings, accelerating wear on these components over time. The bobbin case and hook assembly are particularly susceptible to premature wear from consistently high bobbin tension. Conversely, persistently low tension combined with thread bunching causes excess thread waste to accumulate in the bobbin area and around the hook, which can interfere with the precise hook timing and eventually cause the very skipped stitches that initially signaled the problem.

Test Strip Diagnosis Reveals Whether the Top or Bobbin Tension Is at Fault

You determine whether the problem is top tension or bobbin tension by sewing a test strip with two contrasting thread colours — one on the top spool and one in the bobbin. If loops of the top thread appear on the top face of the fabric, the top tension is too loose relative to the bobbin tension, meaning the top thread is not being held firmly enough as it passes through the tension discs. If the top thread pulls completely to the underside and appears as loops on the bottom, the top tension is too tight OR the bobbin tension is too loose — both conditions produce the same visible symptom. In both cases, start with top tension adjustments before touching the bobbin screw.

Always Adjust Top Tension First; Reserve Bobbin Tension for After Full Dial Range Is Exhausted

Always start with top tension adjustments — the dial is easier to access, changes are more incremental, and the majority of tension problems resolve within the top tension dial range without touching the bobbin screw. Only adjust bobbin tension if systematic top tension changes across the full dial range — from 0 to 9 — do not produce balanced stitches on your test strip. The bobbin adjustment screw is more sensitive than the top dial: a quarter turn of the bobbin screw typically produces a larger tension change than a full half-step on the top tension dial, making over-correction likely if you resort to bobbin adjustment prematurely.

References

• ISO. (1991). ISO 4915:1991 — Textiles: Stitch Types: Classification and Terminology. International Organization for Standardization. https://www.iso.org/standard/1851.html
• Sailrite. (n.d.). How to Adjust Sewing Machine Tension. https://www.sailrite.com/how-to-adjust-sewing-machine-tension
